2007-2018 Jeep Wrangler JK Models with Automatic Transmission.
This cooler can also be used alongside the B&M power steering cooler kit 70301.
- Includes Black Powder Coated Brackets, Hose, and Hardware
- Perfect for Vehicles with larger Wheel/Tire Combinations
- Cooler is an Aluminum Stacked Plate Style Core Design
- Can Help Lower Transmission Temperature
- Cooler has a 20,500 BTU Rating
- Over 65 Years of B&M Quality
- Easy Installation
Information:
Fits 2007-2018 Jeep Wrangler JK Models with Automatic Transmission. Does Not fit 2018 Jeep Wrangler JL models.
Application Summary:
| Year |
Make/Model |
| 2007-2017 |
Jeep Wrangler |
| 2018 |
Jeep Wrangler JK |
| Attributes |
| Brand |
B&M |
| BTU Rating |
20500 |
| Bullet Point #1 |
Aluminum Stacked Plate Style Core |
| Bullet Point #2 |
Black Powder Coated Brackets |
| Bullet Point #3 |
20,500 BTU Rating |
| Bullet Point #4 |
Easy Direct Fit Installation |
| California Proposition 65 |
Yes |
| Category |
Transmission and Drivetrain |
| Color |
Black |
| Core Design/Type |
Stacked Plate |
| Core Material |
Aluminum |
| Core Row Quantity |
40 |
| Core Tube Width |
1.250 in. |
| Core Tube Width (in) |
1.25 |
| Core Type |
Stacked Plate |
| Country of Origin (Primary) |
CA |
| Depth (in) |
1.5 |
| Design Type |
Stacked Plate |
| Electrical Fan |
No |
| Emission Code |
5 |
| Finish |
Painted |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Height (IN) |
10 |
| Inlet Attachment Type |
Female Threads |
| Inlet Diameter |
0.500 in., 1/2 NPT |
| Inlet Diameter (in) |
1/2 NPT |
| Inlet Size |
1/2 NPT |
| Length |
10.000 in. |
| Length (IN) |
10 |
| Life Cycle Status Code |
Available to Order |
| Line Inside Diameter |
0.375 in. |
| Line Inside Diameter (in) |
0.375 |
| Low Temp Bypass |
No |
| Low Temperature Bypass |
No |
| NAFTA Preference Criterion Code |
D |
| Outlet Attachment Type |
Female Threads |
| Outlet Diameter |
0.500 in., 1/2 NPT |
| Outlet Diameter (in) |
1/2 NPT |
| Outlet Size |
1/2 NPT |
| Package Contents |

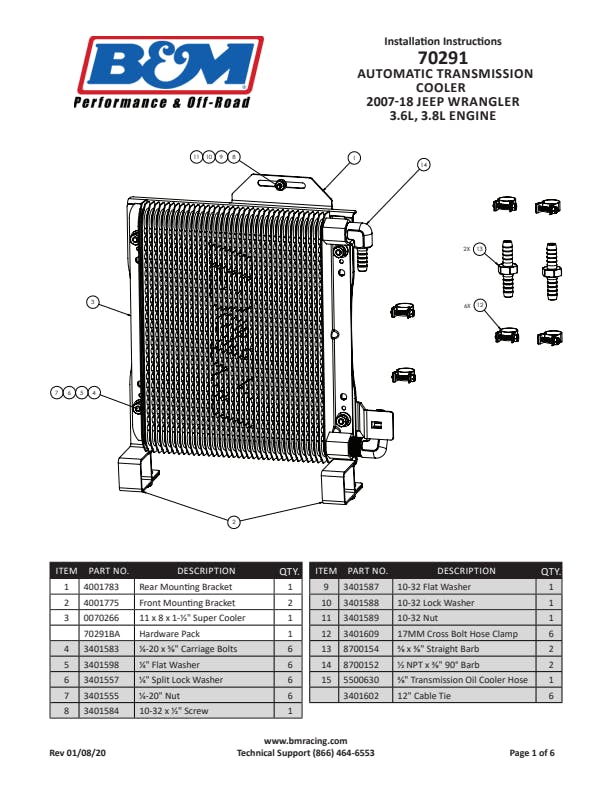

Cooler, Hose, Brackets, Hardware and Instructions. |
| Product Type |
Automatic Transmission Oil Cooler |
| Row Quanity |
40 |
| Sale Category |
Transmission and Drivetrain |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Standard Pack |
1 |
| Thickness |
1.500 in. |
| Thickness (in) |
1.5 |
| Universal Or Specific Fit |
Direct-Fit |
| Universal/Direct-fit |
Direct Fit |
| Warning |
California Proposition 65 |
| Warranty Time |
12 |
| Width |
11.250 in. |
| Width (IN) |
11.25 |
| Width (in.) |
11.250 |
| GTIN |
00019695953973 |
