Shop Accessories for Your Vehicle
Fits Rear Ends w/GM Small Pattern 10/12 Bolt Bearing on Axle (BOA) Non-Flush Mount Housing Ends (5x4.75", 5x5"BC)
This system features the 6-piston, 6P caliper mounted to a 13", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13” Pro+ fits most 17” or larger wheels.
This system features the 6-piston, 6P caliper mounted to a 13", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13” Pro+ fits most 17” or larger wheels.
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Information:
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**| Attributes | |
| Axle | Rear |
| Axle Flange | GM Small Pattern 10/12 Bolt Bearing on Axle (Buick/Olds/Pontiac) |
| Box Count | 2 |
| Brand | Baer Brakes, Baer Brakes |
| California Proposition 65 | WARNING: Cancer - www.P65Warnings.ca.gov |
| Caliper | 6P Red, 6P |
| Caliper Color | Red, Red |
| Category | Brake, Brake |
| Country of Origin (Primary) | US |
| Disc Brake Pad FMSI Number | D0731, D0731 |
| Emission Code | 6, 6 |
| Export Description | Brake Components, Brake Components |
| Grade Type | Performance, Performance |
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Hazardous Material Code | N |
| Hose Material | Stainless Steel, Steel Braided |
| Includes Park Brake | Yes, Yes |
| Includes Park Brake Cables | No, No |
| Life Cycle Status Code | Available to Order |
| Lug Count | 5 Lug, 5 Lug |
| Min Wheel Dia (verify using template) | 17in, 17 |
| Part Type | Disc Brake Upgrade Kit, Disc Brake Upgrade Kit |
| Product Line | 13 Inch Pro+, 13 Inch Pro+ |
| Product Type | 13 Inch Pro+ Rear Brake Kit, 13 Inch Pro+ Rear Brake Kit |
| Rotor Diameter | 13 |
| Rotor Surface | SDZ |
| Rotor Thickness | 1.100, 1.100 |
| Rotor Type | 2-Piece, 2-Piece |
| SDR Required Flag | N |
| Sub Category | Service Kits, Service Kits |
| Surface Type | Slotted, Drilled & Zinc Plated, Slotted, Drilled & Zinc Plated |
| System Notes | GM 10/12 bolt with bearing on axle (BOP) rear.. 5 on 4.75 and 5 on 5 bolt circle. Does not include park brake cables does include Park Brake, Fits GM Small Pattern 10/12 bolt Bearing on Axle (BOP) Housing Ends, Also Fits Hybrid 10/12 Bolt Non-Flush Mount 3.150" Bearing, 2.780" axle register |

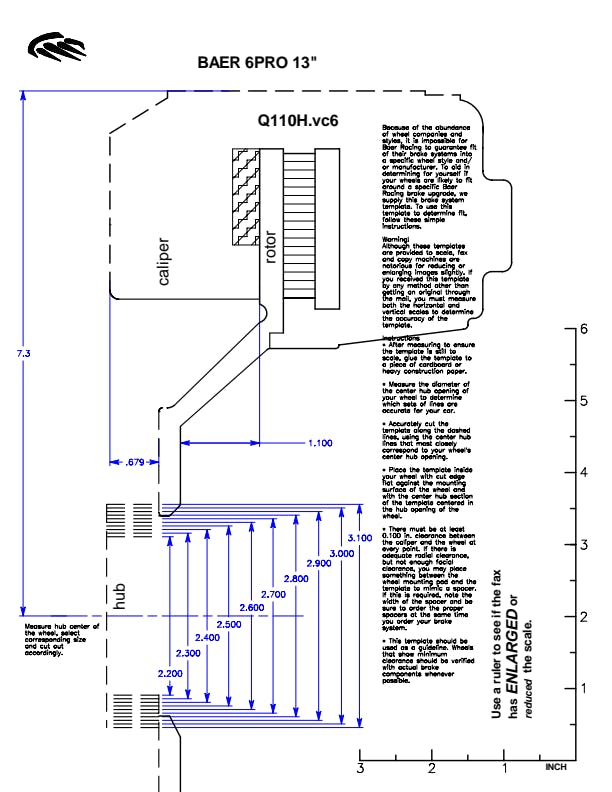

| Template | Q110H, Q110H |
| Warranty Time | 1 |
| Wheel Lug/Bolt Pattern | 5x4.75/5x5.00, 5x4.75/5x5.00 |
| GTIN | 00844165043225 |
