Fits 1982-92 GM F-Body Cars w/OE Borg Warner 9 Bolt C-clip (BIH) Housing Ends
This system features the 4-piston, S4 caliper mounted to a 13", 2 piece slot, drill, zinc-plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1-C pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13" SS4+ fits most 17” or larger wheels.
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
Information:

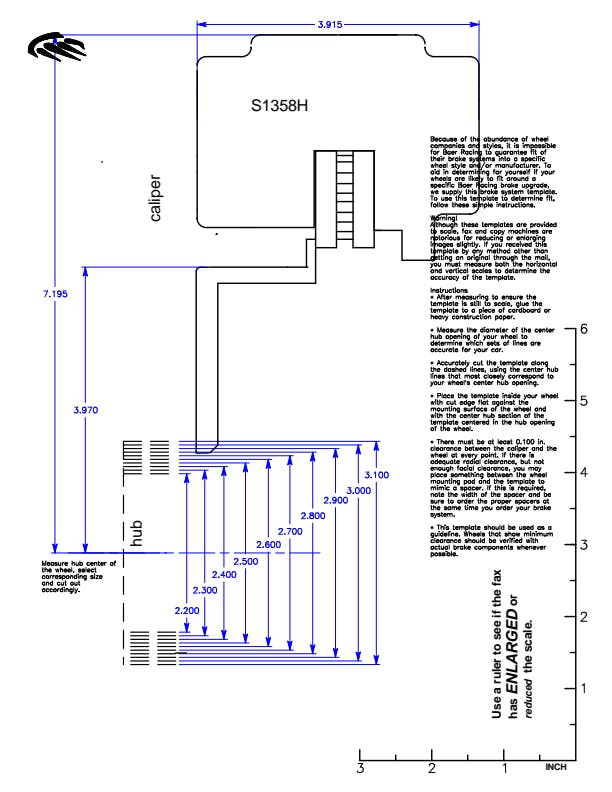

** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.**
Application Summary:
| Year |
Make/Model |
| 1982-1992 |
Chevrolet Camaro |
| 1982-1992 |
Pontiac Firebird |
| Attributes |
| Applications |
GM F-Body 82-92 |
| Axle |
Rear, Rear |
| Box Count |
2 |
| Brand |
Baer Brakes, Baer Brakes |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Caliper |
S4, S4 |
| Caliper Color |
Silver, Silver |
| Category |
Brake, Brake |
| Country of Origin (Primary) |
US |
| Disc Brake Pad FMSI Number |
DR1-C, DR1-C |
| Emission Code |
6, 6 |
| Export Description |
Brake Components, Brake Components |
| Fitment Notes |
w/OE Borg Warner 9 Bolt C-clip (BIH) Housing Ends, w/OE Borg Warner 9 Bolt C-clip (BIH) Housing Ends |
| Grade Type |
Performance, Performance |
| Harmonized Tariff Code (Schedule B) |
8708300050 |
| Hazardous Material Code |
N |
| Hose Material |
Stainless Steel, Steel Braided |
| Includes Park Brake |
Yes, Yes |
| Includes Park Brake Cables |
Yes, Yes |
| Life Cycle Status Code |
Available to Order |
| Lug Count |
5 Lug, 5 Lug |
| Min Wheel Dia (verify using template) |
17in, 17 |
| Part Type |
Disc Brake Upgrade Kit, Disc Brake Upgrade Kit |
| Product Line |
13 Inch SS4+, 13 Inch SS4+ |
| Product Type |
13 Inch SS4+ Rear Brake Kit, 13 Inch SS4+ Rear Brake Kit |
| Rotor Diameter |
13 |
| Rotor Surface |
SDZ |
| Rotor Thickness |
.810, .810 |
| Rotor Type |
2-Piece, 2-Piece |
| SDR Required Flag |
N |
| Sub Category |
Service Kits, Service Kits |
| Surface Type |
Slotted, Drilled & Zinc Plated, Slotted, Drilled & Zinc Plated |
| System Notes |
Stock 9 bolt Borg Warner Disc rear. Includes park brake and cables, Fits stock Borg Warner 9 bolt C-clip rear end |
| Template |
S135H, S135H |
| Warranty Time |
1 |
| Wheel Lug/Bolt Pattern |
5x4.75, 5x4.75 |
| GTIN |
00844165035176 |
