Edelbrock Stage 1 Street Supercharger System part #15560 (No Tuner) for 2012-19 Scion FR-S, BRZ, or Toyota GT86.

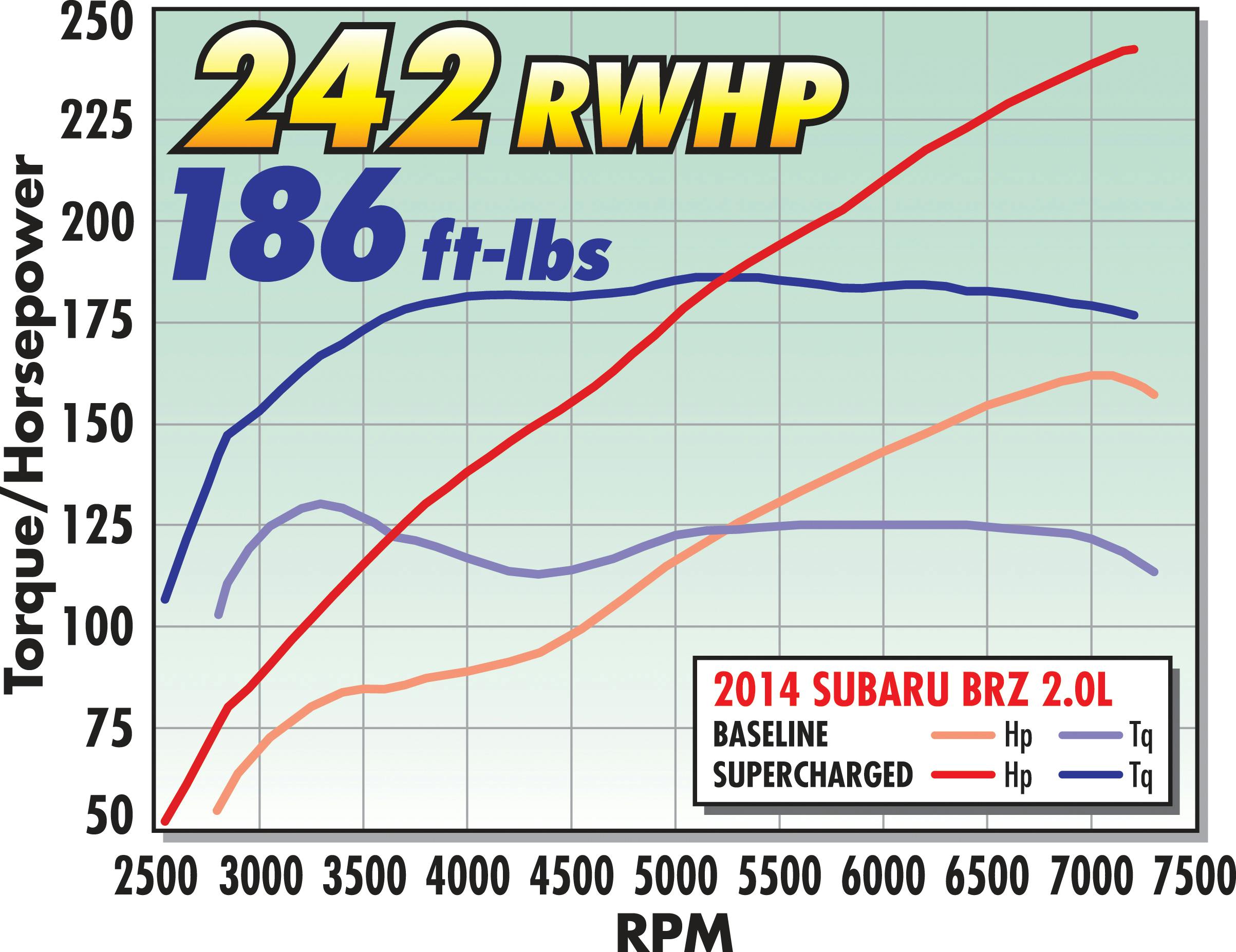

The Edelbrock Stage 1 Street Supercharger System part #15560 (No Tuner) for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. It's unique inverted design allows for maximum flow, while retaining great daily driving characteristics. It has been designed from the ground-up and utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. As with all Edelbrock superchargers, this system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. To cool the incoming air, is a large air-to-water intercooler and heat exchanger. All of these features help the Edelbrock deliver dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. Lastly, the supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock powered. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.
Application Summary:
| Year |
Make/Model |
| 2013-2016 |
Scion FR-S |
| 2013-2018 |
Subaru BRZ |
| 2017-2018 |
Toyota 86 |
| Attributes |
| 9040 |
D-215-116 |
| Air Filter Included |
Yes |
| Calibration |
No |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB Executive Order Number |
D-215-116, D-215-116 |
| Center Housing Cooling Type |
Intercooler, Intercooler, Intercooler |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Finish |
Black Powder Coated, Black Powder Coated, Black Powder Coated |
| Gasket Or Seal Included |
Yes, Yes, Yes |
| Harmonic Balancer Diameter |
Stock |
| Harmonized Tariff Code (Schedule B) |
8708998175 |
| Hazardous Material Code |
N |
| Hose Included |
Yes, Yes, Yes |
| Housing Material |
Cast Aluminum, Cast Aluminum, Cast Aluminum |
| Internal Step Up |
Yes |
| Life Cycle Status Code |
Available to Order |
| Mounting Bracket Included |
Yes |
| Mounting Hardware Included |
Yes, Yes, Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Capacity |
125 |
| Outside Pulley Diameter |
3.25, 3.25, 3.25 |
| Potential Risk Chemical |
Chrome |
| Pulley Belt Width |
6-Rib |
| Quantity |
Kit |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov., WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Rotor Type |
Eaton TVS 1320, Eaton TVS 1320, Eaton TVS 1320 |
| SDR Required Flag |
N |
| SDS Sheet Number |
NA |
| System Type |
Stage 1 - Street System, Stage 1 - Street System, Stage 1 - Street System |
| Universal Or Specific Fit |
Specific, Specific, Specific |
| Vehicle Model |
FRS/BRZ/FT86, FRS/BRZ/FT86, FRS/BRZ/FT86 |
| Warranty Time |
36 |
| GTIN |
00085347155606 |
