K&N's easy-to-install Typhoon cold-air intake system replaces the restrictive factory air filter and air intake housing delivering a guaranteed power gain. The low-restriction aluminum intake tube comes in an attractive chrome-like finish.
The K&N 69-8606TP Typhoon cold-air intake system is a free-flowing, mandrel-bent aluminum tube air induction system designed to fit some Scion XA and Toyota Yaris models. The restrictive factory air filter and air intake housing are replaced by the K&N Typhoon cold-air intake which is designed to pull in outside air and dramatically reduce air flow restriction by smoothing and straightening air flow. This allows your engine to inhale a larger amount of air than the factory air intake. More air means more usable power and acceleration throughout the engine's RPM range. The 69-8606TP cold-air intake consists of a black rubber topped K&N high-flow air filter that mounts near the driver side wheel well directing outside air through free-flowing aluminum tubing that delivers high volumes of clean, colder air into the engine's throttle body for a guaranteed power gain. The oversized cone shaped air filter comes with a water repellent DryCharger filter wrap to protect the filter from moisture. The air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. ach vehicle and air intake.
- Guaranteed To Increase Horsepower
- Designed To Improve Throttle Response And Engine Sound
- Free Flowing Aluminum Tube
- Easy To Install Usually In 90 Minutes or Less
- Lasts Up To 100000 Miles Before Service Is Required
- Replaces Entire Factory Air Intake System
- Washable And Reusable Lifetime Air Filter
- K&N Million Mile Limited Warranty
Information:
Designed For Increased Performance; Utilizes The Finest Quality Components; Guaranteed To Provide More Horsepower; Guaranteed To Increase Acceleration; Available In High-Quality Finishes; Includes High Flow Washable/Reusable Air Filter; Easy To Install; Million Mile Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2004-2006 |
Scion xA |
| Attributes |
| Air Box Included |
No |
| Air Filter Color |
Red |
| Air Filter Element Washable |
Yes |
| Air Filter Height |
5.500 in. (140mm) |
| Air Filter Large End Diameter |
6.000 in. (152mm) |
| Air Filter Material |
Cotton Gauze |
| Air Filter Oulet Length |
2.500 in. (64mm) |
| Air Filter Oulet Width |
2.500 in. (64mm) |
| Air Filter Outlet Length |
2.500 in. (64mm) |
| Air Filter Outlet Shape |
Round |
| Air Filter Outlet Width |
2.500 in. (64mm) |
| Air Filter Washable |
Yes |
| Alternate Part Number |
69-8606TP |
| ASIN |
B000E5S7EM |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| CARB EO Number |
D-269-38 |
| Clamp Color |
Natural |
| Clamp Color/Finish |
Natural |
| Clamp Material |
Stainless Steel |
| Clamp Quantity |
4 |
| Clamp Style |
Regular |
| Clamps Included |
4 |
| Country of Origin (Primary) |
US |
| Coupler Color |
Black |
| Coupler Color/Finish |
Black |
| Couplers Included |
1 |
| Emission Code |
Legal US |

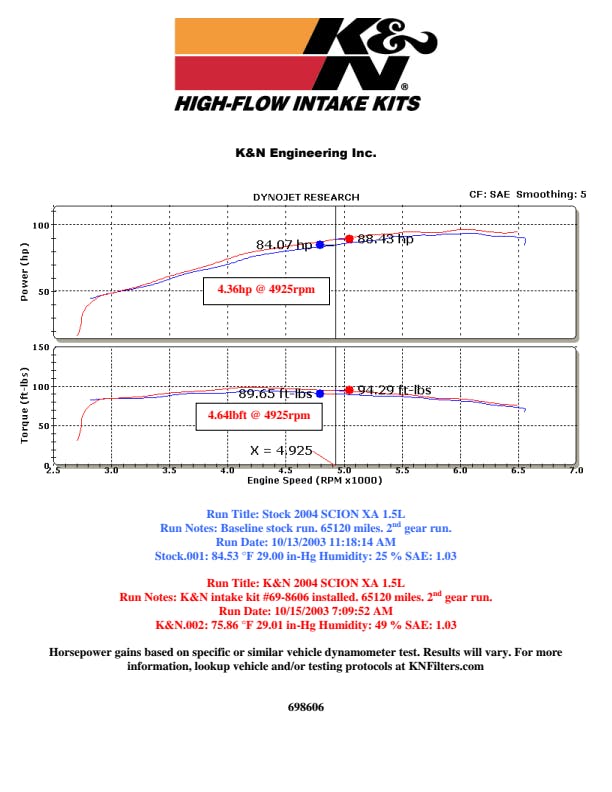

| Estimated Horse Power Gain |
4.36 HP @ 4925 RPM |
| Estimated Horsepower Gain |
4.36 HP @ 4925 RPM |
| Estimated Torque Gain |
5 lbft |
| Filter Color |
Red |
| Filter Material |
Cotton Gauze |
| Flange Angle |
0 degrees |
| Flange Offset |
0 in (0 mm) |
| Flange Type |
Centered |
| Harmonized Tariff Code (Schedule B) |
8421310000 |
| Hazardous Material Code |
N |
| Horse Power Increase |
4 HP |
| Intake Pipe Color |
Polished |
| Intake Pipe Color / Finish |
Polished, Blue, Polished |
| Intake Pipe Inlet Length |
20.750 in. (527mm) |
| Intake Pipe Inlet Shape |
Round |
| Intake Pipe Inlet Width |
2.500 in. (64mm) |
| Intake Pipe Material |
Aluminum |
| Intake Pipe Outlet Length |
20.750 in. (527mm) |
| Intake Pipe Outlet Shape |
Round |
| Intake Pipe Outlet Width |
2.500 in. (64mm) |
| Intake Pipe Ports |
All intake tube ports needed for the specified applications are included |
| Item Weight |
6.000 lbs. (2.7 kg) |
| Life Cycle Status Code |
Available Only While Supplies Last |
| Mass Air Flow Sensor Adapter Included |
Yes |
| Mass Air Flow Sensor Included |
Mass Air Flow Sensor Adapter Included When Required |
| Mounting Hardware Included |
Yes |
| NAFTA Preference Criterion Code |
B |
| Oil Included |
Yes, Filter Is Pre-Oiled |
| Package Material |
Paperboard |
| Package Type |
Box |
| Product Box Height |
8.5 in (216 mm) |
| Product Box Length |
18.25 in (464 mm) |
| Product Box Width |
14.5 in (368 mm) |
| Product Style |
69 Series Typhoon Kits |
| Replacement Filter |
RU-4950 |
| RPM |
4925 |
| SDR Required Flag |
N |
| Street Legal In All US States |
See Application Link Above, Not legal for sale or use in California on any pollution controlled motor vehicle.
NOTE: Some specific models and years may be legal in CA. Check the CARB status on your parts at knfilters.com. |
| System Type |
Cold-Air Intake System |
| TUV Approved (Europe) |
No, No |
| Warranty |
No-Hassle Lifetime Limited |
| Weight |
6 lb (2.7 kg) |
| GTIN |
00024844105530 |
